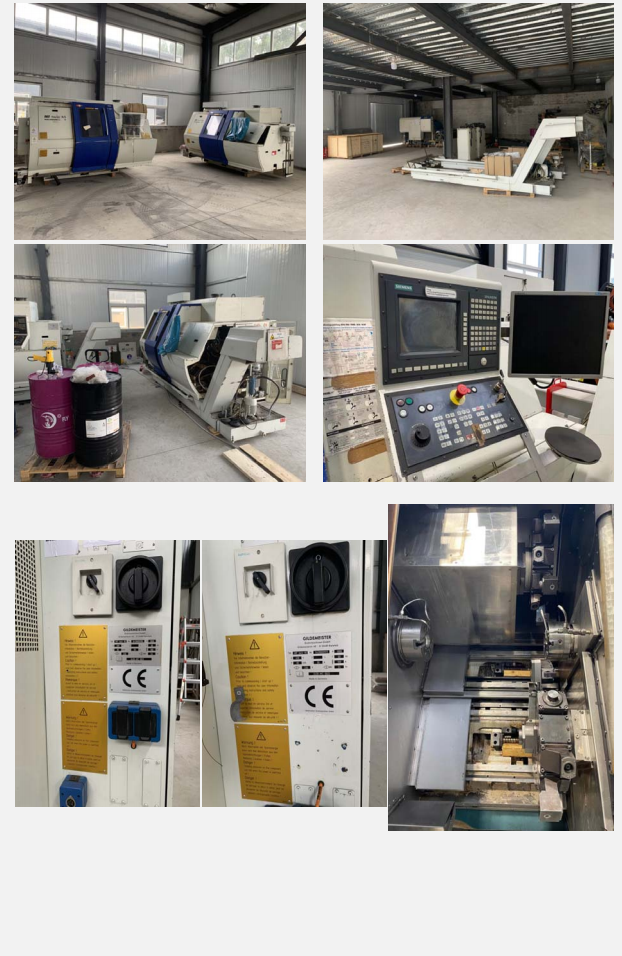

生產商 / Manufacturer: | 德瑪吉集團：吉邁特（Gildemeister） |
型 號 / Machine Model: | MF Twin 65 |
年 份 / Year of Manufacturer: | 1999 |
序列號 / Serial Number: | 第1台： 4280001161 |
| 第2台： 4280001171 |
係 統 / Control system: | Siemens 840C |
回轉直徑 / Swing diameter: | 240 mm |
車削直徑 / Turning diameter: | 200 mm |
主軸距離 / Spindle distance: | 800 mm |
溜板1行程 / Slide 1 flat & length travel: | 199/555 mm |
溜板2行程 / Slide 2 flat & length travel: | 199/555 mm |
主軸2行程 / Spindle 2 length travel: | 600 mm |
◤主軸1-左側 / Spindle 1- Left: |
|
Chuck diameter: | 200 mm |
Max. bar diameter: | 65 mm |
Spindle bore: | 79 mm |
Clamping tube inner diameter: | 66 mm |
Front bearing diameter: | 120 mm |
◤主軸2-右側 / Spindle 2 - Right: |
|
Chuck diameter: | 200 mm |
Max. bar diameter: | 42 mm |
Spindle bore: | 56 mm |
Clamping tube inner diameter: | 44 mm |
Front bearing diameter: | 90 mm |
◤主驅動器1-左側 / Main Drive 1- Left: |
|
Max. drive power (40/100% ED): | 28/21 kW |
Range of speed: | 25~5000 rpm |
Max. drive torque (40/100% ED): | 320/240 Nm |
C axis speed: | 250 rpm |
C axis torque: | 200 Nm |
Accuracy: | 0.025 。 |
◤主驅動器2-右側 / Main Drive 2 - Right: |
|
Max. drive power (40/100% ED): | 18/14 kW |
Range of speed: | 31~6300 rpm |
Max. drive torque (40/100% ED): | 130/173 Nm |
C axis speed: | 250 rpm |
C axis torque: | 120 Nm |
Accuracy: | 0.025 。 |
◤溜板1-上部 / Slide 1 - Upper: |
|
X/Z feed rate: | 20/30 m/min |
Feed force: | 400/700 daN |
Travel resolution: | 0.001 mm |
Spindle pitch: | 12x28/15x32 mm |
◤溜板2-下部 / Slide 2 - Lower: |
|
X/Z feed rate: | 20/30 m/min |
Feed force: | 400/700 daN |
Travel resolution: | 0.001 mm |
Spindle pitch: | 12x28/15x32 mm |
◤刀架1和2 / Tool Carrier 1 & 2: |
|
Capacity: | 2 x 12 |
Shaft diameter (DIN 69880): | 30 mm |
Max. drive power (40/100% ED): | 7/5 kW |
Max. drive torque (40/100% ED): | 22/15 Nm |
Range of speed: | 40~4200 rpm |
外形尺寸（長x寬x高） / Dimensions (L x W x H): | 4770 x 2220 x 1950 mm |
機床毛重 / Gross weight: | 6500 kg |
◤周邊裝置和附件 / Equipments and Accessories: | 集成在主機上的電氣櫃 / Integrated electric cabinet. |
卡盤或卡套 / Jaws for chucks. |
排屑器 / Chip conveyors. |
棒料器 / Bar feeders. |
刀柄 / Tool holders. |
動力刀座及其他 / Power tool seats and others. |
技術資料 / Technical documents. |
